Generate GPS Signals

• Self-generate and supply GPS signal under disturbance of GPS signal
• Continuous monitoring on local input GPS signal – Jamming and Spoofing
• Automatic changeover to self-generated GPS signal when local input GPS signal is disturbed
• Automatic changeover to local input GPS signal when it is recovered
• Generates at least 12 GPS L1 satellite signals
• Generates GPS signals based on standard time and satellite tracking
• Acquires location information from local GPS signals
• Synchronizes precision timing using local GPS signals
• Maintains high precision clock and synchronized to external input standard signal (KRF-E1)
• Maintains synchronized precision timing with remote IEEE1588 PTP Master

Generate Reliable Signal

• Receives GPS tracking signals from remote GPS server
• System managing and monitoring through EMS
• Receiving KRF T1/E1 and frequency synchronization
• IEEE1588 PTP slave feature available for synchronized timing
• Linkage to PTP Master for synchronized timing
• Automatic changeover to local GPS in occurrence of malfunction

Product Features

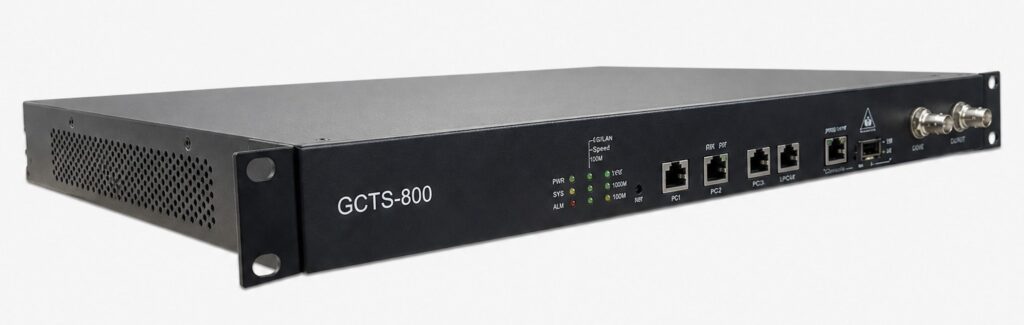

GCTS-800

• Generate GPS signals based on standard time and satellite tracking
• Receive local GPS signal
• Maintains high precision time synchronization (<±100ns)
• Receives locational information through local GPS signal
• Synchronizes precision time through local GPS signal
• Maintains precision time synchronization with remote IEEE1588 PTP server
• Synchronizes with KRF-E1/T1 frequency during absence of local GPS signal
• Detection and response to GPS Jamming
• GPS Jamming detection and Alarm handling feature
• Collects GPS tracking information from remote GPS server during Jamming
• Maintains high precision clock through locking into external reference time
• Time information maintains initial GPS time or uses IEEE1588 information
• Outputs E1 signal that is synchronized to internal high precision clock

GPS Server

• Receives GPS tracking and GPS status information
• Refreshes satellite tracking information in 10 seconds interval
• Able to deliver satellite tracking information when requested by GPS generator
• Monitoring feature on receiving GPS signals
• Delivers status information to EMS server
• Provides IEEE1588v2 PTP GrandMaster clock
• Provides high precision clock
• Time : < 100 ns
• Frequency : 1 × 10-11 (ITU-T G.811)
• Supports various modes (Unicast, Multicast, and Mixed-mode)
• Provides PTP Service to up to 512 Unicast Slaves
