OGM-64

Outdoor integrated GNSS antenna PTP/NTP
GrandMaster Clock with PoE
Key Customers
Mobile Communication Providers/ Power Industry/ Rail Industry ISP Service Providers/ Transmission Network

Basic Informations

Model OGM-64
Type Outdoor integrated GNSS antenna PTP/NTP
GrandMaster Clock with PoE
Applied Fields LTE mobile network
Small cells synchronization
IEC61850 power grid
Power electric substation
Size 121 x 121 (mm)
LIST

Product Overview

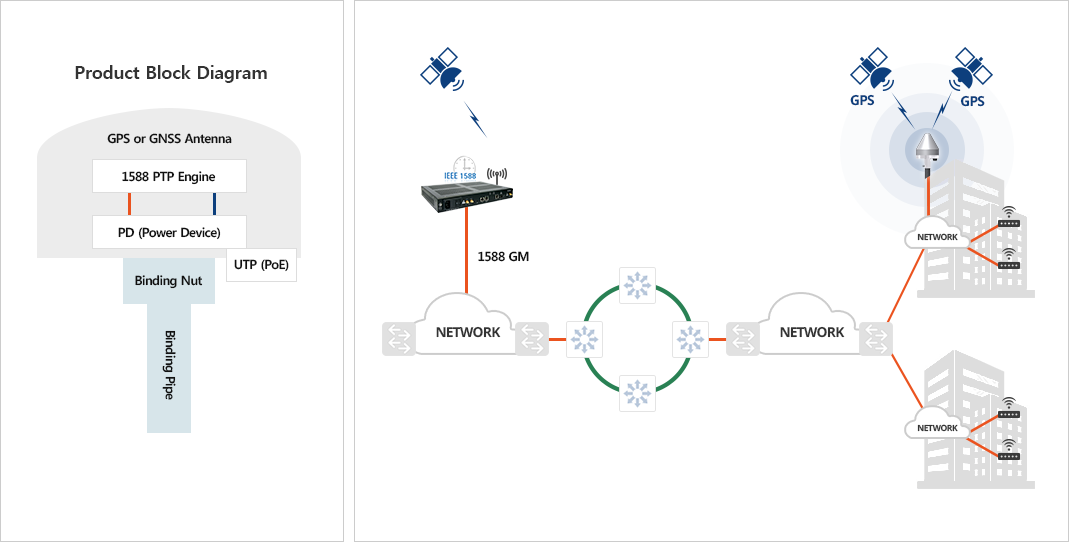

Today small cell in the mobile network and IEC61850 power-grid requires high time accuracy. OGM-64 offers you a simple and effective solution for synchronization by GNSS receiving. It combines GNSS antenna, GNSS receiver, and PTP/NTP GrandMaster Clock functions in one compact weatherproof housing, which allows you to install simple and cost-effective time master without RF cabling. OGM-64 supports PTP as master and NTP as time server. Also it supports both IPv4 and IPv6 for packet traffic.

Product Description

  • GNSS Antenna, Receiver and PTP/NTP GrandMaster Clock combined in a weatherproof outdoor dome unit
  • - No in-house rack space, space-saving through outdoor pole mounting
  • - No RF cabling
  • 100 Base-T Power over Ethernet(PoE) small form-factor
  • - Connection via one single Ethernet cable
  • - No additional power supply needed
  • - Cost-effective synchronization solution
  • - Up to 100m cable length between nodes
  • Supports G.8272 time accuracy and installs master nearby the PTP clients
  • - Can be minimizing the PDV of the packet networks
  • - Getting precise time accuracy in the clients
  • Multi-protocol supporting
  • - Simultaneous PTP master and NTPv3/v4 time server
  • - IPv4 and IPv6
  • - Optional telecom or power profile

Product Features

  • Mounting outdoor, roof of the building (pole mounting)
  • Integrated GNSS Antenna & Receiver, and PTP/NTP GrandMaster
  • No RF cabling, one Ethernet cable with PoE (Power of Ethernet)
  • Multi GNSS receiver
  • Supports 64 PTP clients with NTPv3/v4 time server, IPv4/IPv6
  • 100Base-T with SyncE master for frequency distribution
  • Meet IEEE1588v2-2008, ITU-T G.826x, G.827x for telecom profile
  • - (G.8261 PTP Unicast, G.8275.1 Full time, G.8275.2 Partial time, Sync-E)
  • Meet C37.238-2011, 61850-9-3:2016 for power profile
  • Meet ITU-T G.8272 PRTC Timing Accuracy
  • Web GUI management

Applied Fields

  • LTE mobile network
  • Small cells synchronization
  • IEC61850 power grid
  • Power electric substation

Specification

GNSS Input

  • GPS and GLONASS
  • other GNSS (Optional)

Operating Environment

  • Operating temperature : -40 ~ +60ºC
  • Waterproof connection
  • Weather-proof outdoor equipment
  • <1.5Kg (weight)
  • Power consumption : < 12 W
  • External diameter : 150 mm

Interface Type

  • 100 Base-T Power-of-Ethernet
  • 100/1000 Base-T (Optional)

PoE PD Type

  • IEEE802.3af, mode-B, class 3
  • 12W/48Vdc: pin 4/5(+), pin 7/8(-)

Time and Frequency Accuracy

  • Time : <±100ns to UTC (G.8272 PRTC)
  • Frequency : 1x10-11 (ITU-T G.811 PRT)
  • - Supports time offset compensation
  •   between 100Mbps master and 1Gbps clients*

Supporting Timing Protocols

  • ITU-T G.8265.1 default profile
  • ITU-T G.8275.1 Full time mode
  • ITU-T G.8275.2 Partial time mode
  • IEEE C37.238-2011, IEEE 61850-9-3:2016 for power electrical grid application

Management

  • WEB base management, Web UI
  • Telnet, SSH for remote system control
  • SNMP
  • Remote software upgrade
