STS-96 (DOTS)

E1/T1,IEEE1588,NTP Digital Office Timing Supply
Key Customers
Mobile Communication Providers
Power Industry/ Rail Industry
ISP Service Providers/ Transmission Network

Basic Informations

Model STS-96 (DOTS)
Type E1/T1,IEEE1588,NTP Digital Office Timing Supply
Applied Fields Supply communication network reference frequency
Packet network time synchronization server (PTP,NTP)
Power system time synchronization source
Utilization as synchronization source for other devices requiring time- synchronization
Size 482(W) x 354(D) x 177(H) mm, 4U height, 19” Rack Mountable
LIST

Product Overview

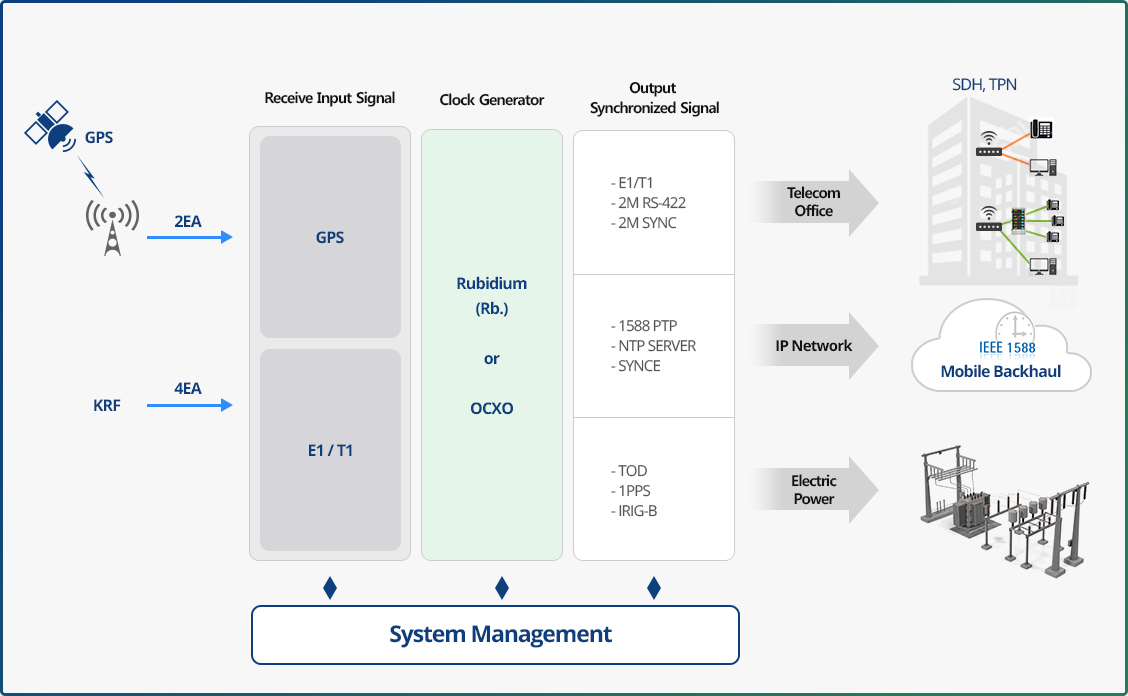

STS-96 receives synchronized signal of 1 level from GNSS or higher rank office and generates frequency synchronized signals, such as E1, T1, 2M, CC, RS-422 etc., to all kinds of digital communication equipment and lower rank office. In Addition, PTP GrandMaster and Stratum1 NTP Server function for time synchronization in the Packet network, supplying precise time information to PTP Slave and NTP Client. Also, it is capable of generating various time synchronization signals such as IRIG-B (000.120), ToD (Time of Day), and 1PPS (Pulse Per Sec.) for time synchronization of power systems and other systems.

Provides Various Clock Synchronization Solution

Product Description

  • High precision synchronization performance (G.811)
  • Using various GNSS satellites as synchronization sources (GPS, GLONASS, Galileo, BeiDou)
  • External input signal performance monitoring and synchronization source selection
  • Application of high performance internal oscillator (Rubidum, OCXO)
  • Provides stable synchronous signal by dualizing system’s main parts (Input Card, Clock Card, Output Card)
  • Various output signals can be used for various fields
  • - Outputs frequency sync signal (E1, T1, 2M, 422, CC)
  • - Outputs Packet network time synchronous signal (PTP GrandMaster, NTP Server, Sync-E)
  • Output Capacity
  • - Frequency synchronous output : Up to 96 ports
  • - PTP slave synchronization : 512~1024 slave / 1G~10G port , 1024 slave/unit, 8192 slave/system
  • - NTP client synchronization : 1000 NTP pks/s (per port)
  • Provides various system management
  • - Terminal Interface (CIT), Telnet, SSH, SNMP, dedicated EMS (Element Management Software)

Product Features

  • Lock to GNSS (GPS, GLONASS, Galileo, Beudou), PRTC (E1,T1,2M)
  • High quality internal Oscillator (Rubidum, OCXO)
  • High precise locking performance (PRTC, ITU-T G.811)
  • Various frequency reference signal output
  • - E1, T1, 2M, 422, CC
  • - 24 port outputs/unit
  • Support PTP GrandMaster (with Sync-E)
  • - <100ns time accuracy (Locked to GNSS)
  • - Hardware Time stamp (Time Stamp Precision : < 10ns rms typical)
  • - Support profile G.8265.1, G.8275.1, G.8275.2
  • - Support Unicast, Multicast, Mixed mode
  • Support NTP Server (with Sync-E)
  • - Stratum1 NTP Server (NTPv3, v4)
  • - 1,000 NTP pks/s (per Port)
  • System Management
  • - Craft Terminal Interface
  • - Telnel, SSH
  • - SNMP
  • - EMS (Server-clients)

Applied Fields

  • Supply communication network reference frequency
  • Packet network time synchronization server (PTP, NTP)
  • Power system time synchronization source
  • Utilization as synchronization source for other devices requir-ing time synchronization

Compliance Standard

IEEE

  • IEEE1588v2-2008
  • IEEE802Q VLAN
  • IEEE802p LAN Layer2 QoS/CoS

ITU-T

  • ITU-T G.703, G.704
  • ITU-T G.811, G.812
  • ITU-T G.82651, G.8275.1 G.8275.2
  • NTPv3, v4

IETF

  • RFC 792
  • RFC 2474
  • RFC 2616

Specification

STS-96 System

  • 482 x 354 x 177 mm (WxDxH)
  • 4U height, 19” Rack Mountable
  • 2 Input Cards
  • 2 Clock Cards
  • 6 Output Cards
  • 1 Main Controller Card
  • 2 Power Cards

Environmental

  • Operating temperature : 0 ~ +50ºC
  • Operating humidity : 0 ~ 90 % at RH non-
    condensing

Power Supply

  • DC input : -38.4 ~ -72Vdc
  • Power consumption : max 160W

Input

  • Embeded GNSS (GPS, GLONASS, Galileo, Beidou)
    Receiver
  • 4 Input T1/E1/2M (User Selectable)
  • Sync Status Message (SSM)
  • Input performance measurement (TIE, MTIE, TDEV, Error Rate) on all inputs
  • Input Selection Mode : Priority, SSM, Performance Threshold
  • 1 + 1 Unit Protection

Clock Card

  • Clock Card Type
  • -
  • Enhanced Rubidum,Stratum 2E Type II (OSC-2E)
  • -
  • Enhanced OCXO Stratum 3E Type III (OSC-3E)
  • Clock Performance
  • - Time Accuracy : < 100ns (Locked to GPS)
  • - Frequency Accuracy : < 1xe-10
  • 1+1 Unit Protection

Frequency Output Card

  • Card Types
  • - E1/T1/2M (E1/T1/2M_DIS)
  • - 64KHz/8KHz Composite Clock (CC_DIS)
  • - 1M/2M RS-422 (422_DIS)
  • 1+1Hitless Output Protection
  • ITU-T G.811 (after locked to Cesium or GNSS input)
  • Compliant with SSM specification per ITU-T G.704

PTP/NPT Server Card

  • Time Accuracy : < 100ns (Locked to GNSS)
  • Hardware Time Stamping
  • - Time Stamp Precision : < 100ns rms typical
  • 2 Ethernet Small Form-factor Pluggable (SFP) Ports
  • Stratum 1 NTP Server
  • - NTP v3, v4 Protocol
  • - Support 1000 NTP pks/s per port
  • PTP Grand Master
  • - Support profile : ITI-T G.8265.1, G.8275.1, G.8275.2
  • - Support 1024 PTP clients per port
  • - Support 1step or 2step clock
  • - Unicast, Multicast, Mixed mode operation
  • Synchronous Ethernet (Sync-E)
  • - Ethernet Synchronization Message Channel (ESMA) support
  • - ITU-T G.8261, G.8262, G.8264

Other Output Card

  • ToD/1PPS
  • - ToD (Time of Day) character string output
    (Once per second)
  • - 1PPS (Pulse per second) TTL output
  • - User selectable output signal type
  • IRIG-B
  • - IRIG-B/000, 120 signal output

Management

  • Management Interface Protocols
  • - Simple fault, visual & contact closures
  • - TCP/IP, IPv4 (EMS, SSH, Telnet)
  • - Interface Commane Set, ASCII
  • - SNMP v2, v3
  • Management Software (EMS)
  • - Available management programs
  • - Window GUI-based management
  • - Server-Client management program
