IS200

PCle IEEE 1588v2 PTP Grandmaster Clock
Key Customers
Mobile Communication Providers
Power Industry/ Rail Industry
ISP Service Providers/ Transmission Network

Basic Informations

Model IS200
Type PCle IEEE 1588v2 PTP Grandmaster Clock
Compliance IEEE 1588v2-2008, ITU-T G.8275.1, G.8275.2
Clients 64
Applied Fields 4G Mobile Network, LTE Small Cell Network
Carrier Ethernet
Industrial Automation Timing
loT(Internet of Things), Sensor Networks
Power Electric, Smart Grid
Size 340mm(W) x 259mm(D) x 44mm(H)
LIST

Product Overview

Telecommunications and Precision measuring equipment require high precision timing (sub micro second unit), in order to acquire valid remote data and process data reliably. Therefore, users relied heavily on GPS for processing precision timing, and recently they are implementing it through Ethernet network.

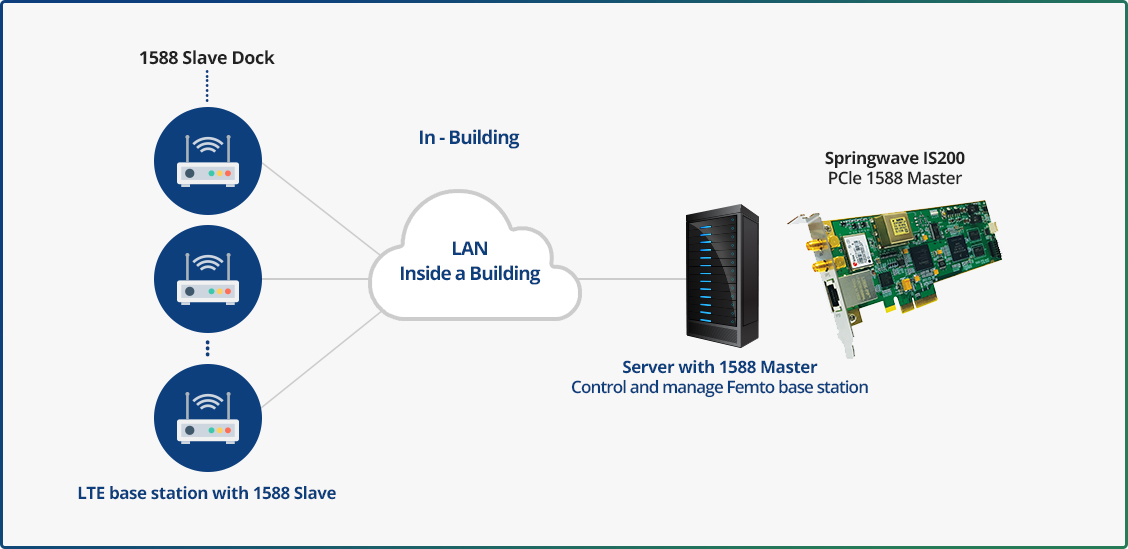

As a relation between Ethernet networks, IEEE 1588v2 PTP (Precision Time Control) is set as technology to process high precision time synchronization, and correct errors within the network. This technology operates GrandMaster equipment as a main, and synchronizes it to slave module, which is inside a receiver that requires time synchronization.

This product is a PCIe type GrandMaster equipment that provides precision timing and frequency to slave modules that users are equipped with. This product provide dualizing function as a preparation for network instability by supporting Alternate master function, and is equipped with function to transfer GNSS synchronized clock through ESMC (Ethernet Synchronization Messaging Channel) in order to synchronize with SyncE equipment.

Product Features

  • IEEE1588v2-2008 Precision Time Protocol(PTP) Grandmaster clock
  • PCI card type IEEE1588v2 PTP grandmaster clock
  • 4x lane low-profile PCIe NIC–Rev.1.0a
  • Comply with IEEE1588v2-2008 standard
  • One 100/1000Mbps Ethernet port
  • One SMA connector for receiving GPS signal
  • Up to 64 clients for PTP slaves
  • Hardware processing for receiving, and generating the PTP time packets
  • Supports unicast, multicast, and mixed mode
  • ITU-T G.8275.1, G.8275.2 time profiles
  • High quality holdover : OCXO, TCXO option
  • In-band management : web GUI, SNMP
  • Supply server UI : Linux, Window

Applied Fields

  • 4G Mobile Network, LTE Small Cell Network
  • Carrier Ethernet
  • Industrial Automation Timing
  • IoT(Internet of Things), Sensor Networks
  • Power Electric, Smart Grid

Specification

GNSS Input

  • Factory option : GPS/SBAS or GLONASS IF
  • Connector : 50Ω SMA [Female]
  • Voltage feed to GNSS antenna : 5Vdc±5%

Mechanical

  • Card size : 64.4 x 167.65 mm
  • Low-Profile PCI Express, half height

Environmental

  • Operating temperature : 0 ~ 50ºC
  • Operating humidity : 0 ~ 90 %
  • RH non-condensing

Power Supply

  • +3.3Vdc, +12Vdc
  • Power consumption : Max 25W

IEEE1588v2 PTP Interface

  • Client capacity : 64 clients, basic
  • Hardware-based PTP packet processing
  • Fully comply with IEEE1588v2-2008 standard
  • Support ITU-T G.8275.1, G.8275.2 Telecom
    Profiles

Time and Frequency Accuracy

  • Accuracy under locked to GNSS at operating temp
  • Time : < 100ns
  • Frequency : 1x10-11 (ITU-T G.811)
  • Holdover Accuracy (over constant temperature)
  • Time : < 8.6us/4hrs (G.812 Type II)
  • Frequency : < 1 x 10-10 /day (G.812 Type II)

I/O Port in Front Panel

  • Monitoring
  • - 1PPS output : 50Ω SMA [Female]
  • PTP interface : 100M/1000Mbps Ethernet
  • GNSS input : 50Ω SMA [Female]

Management

  • WEB base management, Web UI
  • Telnet for remote system control
  • PCIe interface with server’s processor
  • Remote software upgrade
